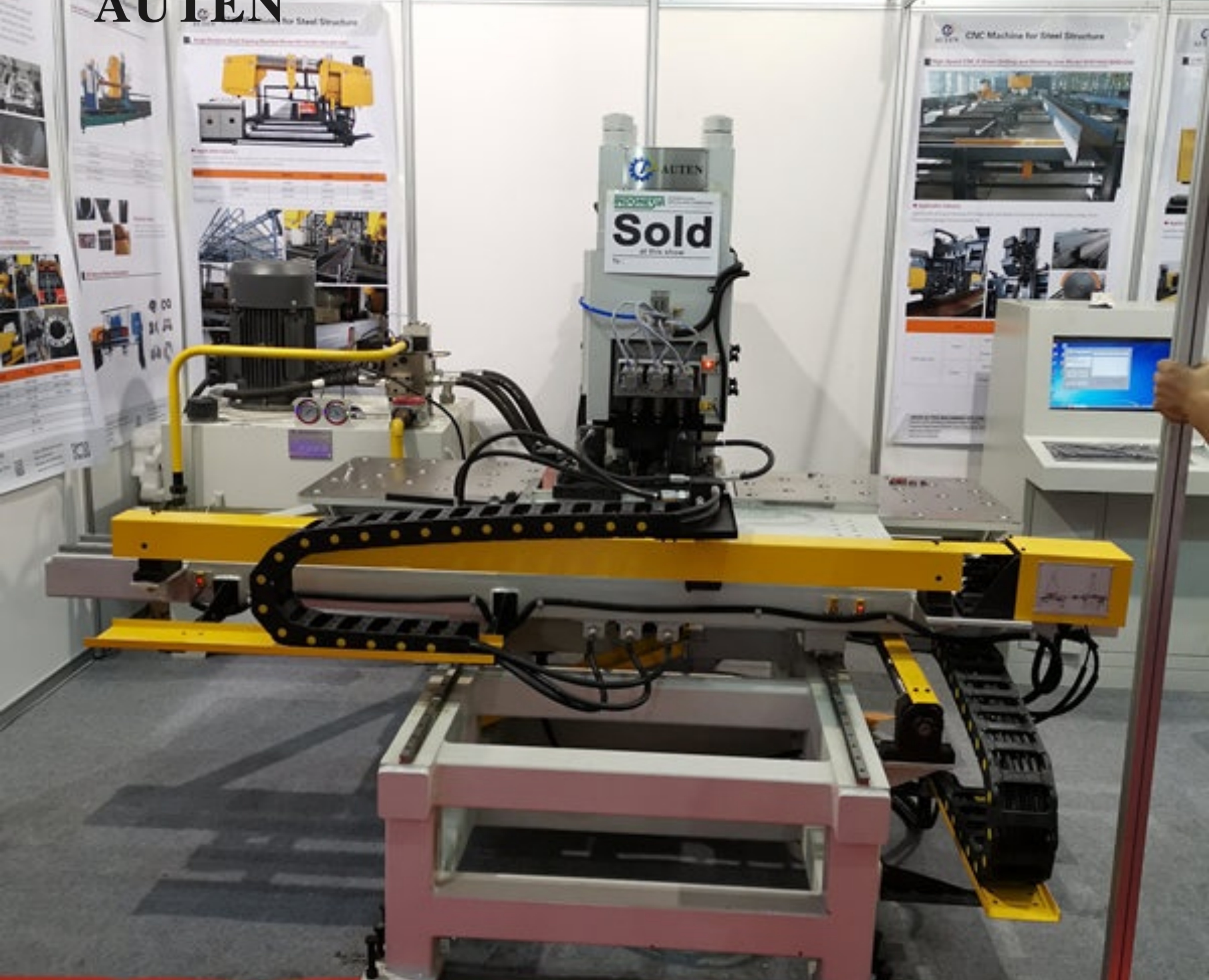

Model BNCZ100 CNC Plate Punching Marking Drilling Machine 50mm Max. Drilling Diameter
Product Introduction:
Plate punching machine used for punching, marking and drilling of steel plates in the field of steel tower. It is also used to punch, drill and mark of metal plates of other industries.
Product specification:
| Model |
BNCZ100 |
| Max size of work piece (mm) |
1500*800 |
| Max. punching diameter (mm) |
Φ26 |
| Max. drilling diameter (mm) |
Φ50 |
| Taper of drilling spindle |
/ |
| Plate thickness (mm) |
Punching |
5～25 (Q235) |
| Drilling |
40 |
| Punching force (kN) |
1000/1200 |
| Marking force (kN) |
800/1200 |
| Min. distance between hole and plate edge (mm) |
Punching |
25 |
| Drilling |
Depends on hole diameter |
| Character size(mm) |
14*10*19 |
| Qty. of character |
12 |
| Die-stations |
4 |
| Feeding speed of drilling (mm/min) |
25~280 |
| Stroke of drilling spindle(mm) |
180 |
| Rotation speed of drilling spindle(r/min) |
120~560 |
| Programming mode |
Command programming, Auto CAD drawing or layout software |
| Overall dimensions L*W*H (m) |
3.2*3*2.6 |
Product Features:
1. The machine body adopts a C-type welded steel plate structure, providing high structural rigidity, excellent operational stability, and a spacious working area for convenient workpiece handling. The equipment is configured with three automatic processing stations, including one dedicated marking station, with automatic station selection to maximize machining efficiency. The clamping system is capable of accommodating workpieces with different dimensions and specifications and incorporates a zero-point reference stop for precise positioning. A ball-transfer worktable enables smooth and flexible workpiece movement. The X- and Y-axis assemblies are driven by servo motors and precision ball screw mechanisms, while PLC-based CNC control precisely manages punching positions to achieve fully automated machining. Operators can input the required workpiece programs, which can be stored, recalled, and reused for subsequent production operations.
2. The steel plate punching machine integrates advanced CNC control technology with a servo-driven feeding system, delivering high production efficiency, dependable operating performance, and consistent workpiece accuracy during continuous manufacturing operations.
3. Major functional assemblies adopt a modular structural design, simplifying routine maintenance, facilitating component replacement, reducing servicing time, and minimizing equipment downtime.
4. The machine is capable of completing punching, marking, and drilling operations on a single steel plate within one integrated machining cycle, significantly improving production efficiency while reducing workpiece transfer and manual handling requirements.
5. The drilling unit features rapid approach, controlled low-speed machining feed, and high-speed return functions, effectively reducing machining cycle time and improving overall equipment productivity.
6. The programming system is designed to provide simple, efficient, and convenient operation. Operators can directly input hole diameters, hole coordinates, and required production quantities into the CNC control system. The equipment also supports machining programs generated by professional lofting software and direct CAD/CAM data conversion, providing greater programming efficiency, flexibility, and production adaptability.
7. An intelligent fault self-diagnostic system is integrated into the equipment to continuously monitor operating conditions, automatically detect abnormal situations, and provide corresponding fault information. This function supports rapid fault identification, troubleshooting, and maintenance, helping increase equipment availability and ensure reliable long-term operation.
This CNC plate punching machine is a specialized metalworking system engineered for integrated punching, marking, and drilling operations on steel plates used in the steel tower manufacturing industry. It delivers high machining precision while complying with stringent dimensional tolerance and surface finish requirements. In addition to its primary application in steel tower fabrication, the versatile equipment provides reliable punching, drilling, and marking capabilities for metal plates across a broad range of industrial applications. It maintains consistent processing accuracy and operational efficiency for various metal workpieces, helping streamline manufacturing workflows, improve production productivity, and enhance finished-product quality across diverse industrial sectors.
